Specifications

Product Type	Programmable Display
Brand	Panasonic
Series	GT Series
Development Software	Terminal GTWIN (Ver. 2 or Ver. 3)
Channel Isolation	Transformer-isolated power supply
Input Ratings	21.6 to 26.4 V DC
Power Consumption	4.8 W
Rated Voltage	24 VDC
Supply Voltage	24 V DC
Display Colour	2 colors (black / white, 8-gray scale)
Light Colour	White LED
Mounting Method	Panel mounting
Depth	39.1 mm
Height	128.8 mm
Width	163.2 mm
Panel Cut-Out Size	150.2 mm x 119 mm
Display Size	5.7 inch
Storage Temperature	–20 to 60 °C
Operating Temperature	0 to 50 °C
IP Rating	IP67
Serial Ports	1
USB Port	1
Supported Serial Protocols	Panasonic FP Series, General-purpose Serial, and Modbus RTU
Touch Type	Analog touch
Compliance Standards	CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL508)

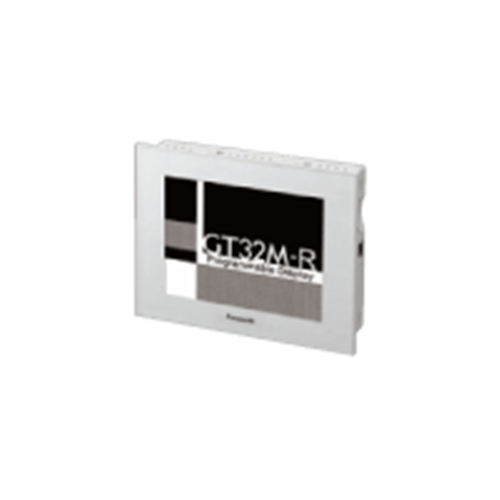

Panasonic AIG32MQ03DR Programmable Display 115.2 mm W x 86.4 mm H 24VDC
