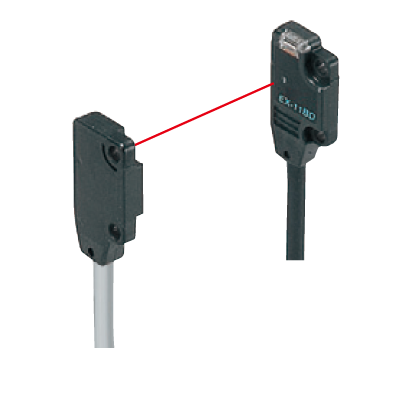

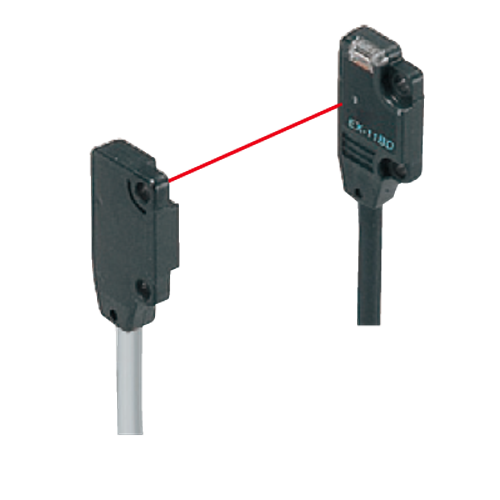

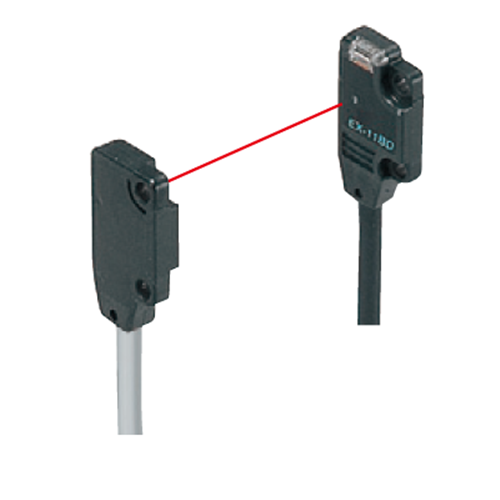

Panasonic EX-11A-PN Ultra-slim Photoelectric Sensor 12-24VDC 150mm Sensing 2m L Cable PNP-Output

Product Code: EX-11A-PN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Ultra-slim Photoelectric Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 2 core cabtyre
Degree of Protection IP67
Housing Material Polyarylate
Humidity 35-85%
Illuminance 3000 lx
Insulation Resistance 20 MOhm
Operation Indicator Orange LED ON
Operational Temperature -30 to 70 deg C
Output Type PNP
Rated Current <10 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <0.5 ms
Sensing Range 150 mm
Sensor Type Standard Thru-Beam Front Sensing
Shock Resistance 500 ms
Utilisation Category DC-12 or DC-13
Weight 50 g

Documents

IPD Product Catalogue V17
PANASONIC Catalogue
