Specifications

Product Type	Threaded Miniature Photoelectric Sensor
Brand	PANASONIC
Cable Length	2 m
Cable Type	3 core cabtyre
Degree of Protection	IP67
Housing Material	Die Cast Zinc
Humidity	35-85%
Illuminance	3000 lx
Insulation Resistance	20 MOhm
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Output Type	PNP
Rated Current	<13 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<0.5 ms
Sensing Range	50 mm
Sensor Type	Diffuse Reflective
Shock Resistance	500 ms
Standards and Approvals	CE, RoHS, UL Recognition
Utilisation Category	DC-12 or DC-13
Weight	45 g

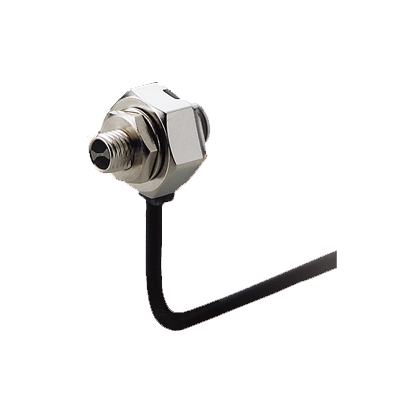

Panasonic EX-32B-PN Threaded Miniature Photoelectric Sensor 12-24VDC 50mm Sensing 2m L Cable PNP-Output
