Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	EX - 40
Cable Length	2 m
Max. Switching Distance	500 mm
Sensing Type	Spot-beam
Type of Switching Output	NPN
Utilization Category	DC-12 or DC-13
Indication	Red LED ON
Electrical Connection	Cable
Illumination	3000 lx
Light Source	Red LED (modulated)
Output Type	NPN
Rated Current	<35 mA
Rated Voltage	12 to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Spot Beam Type
Response Time	<0.5 ms
Cable Type	3-core cabtyre
Housing Material	PBT
Material	Enclosure: PBT (Polybutylene terephthalate), Lens: Polycarbonate, Display cover: Polycarbonate
Depth	10 mm
Height	35 mm
Weight	70 g
Width	18 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	–25 to +55 °C
IP Rating	IP67 (IEC)

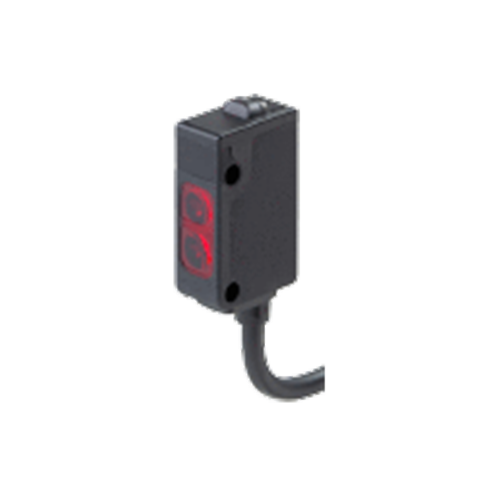

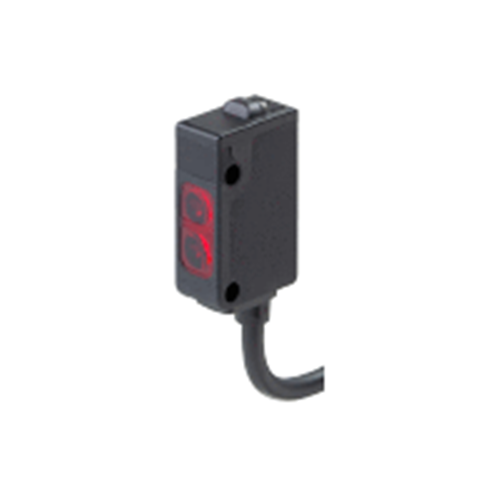

Panasonic EX-43 Convergent Reflective Photoelectric Sensor 12-24VDC 10-70mm Sensing 2m L Cable NPN-Output
