Specifications

Product Type	POWER SUPPLY MODULE 30W FOR INSITE
Brand	ABB
Series	INS-PS-2
Application	Power Supply
Connection Type	Screwless
Communication Interface	InSiteModularBus
Output Power	30 W
Product Compatibility	SCU200
Rated Operational Current AC-15 (Ie)	0.7 A
Power Consumption	0 kW
Rated Frequency	50/60 Hz
Supply Voltage	240 V
Depth	64.9 mm
Height	87 mm
Weight	0.11 kg
Width	35.8 mm
IP Rating	IP20
Ambient Temperature	Operation -25 ... 60 °C
Standards and Approvals	IEC 61010-1 IEC 61326-1

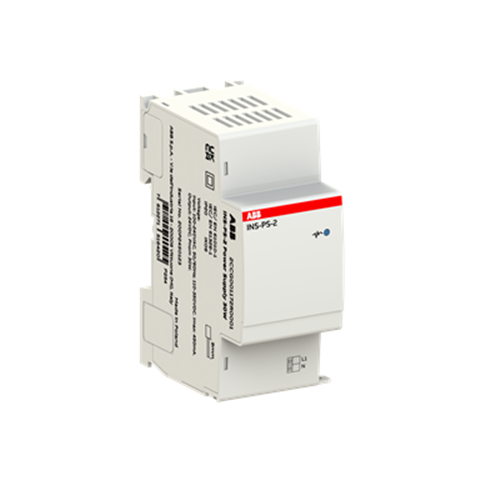

ABB INS-PS-2 POWER SUPPLY MODULE 30W FOR INSITE SCU200
