Specifications

Product Type	TAP-OFF BOX MODULE FOR INSITE SCU
Brand	ABB
Series	INS-TB
Communication Interface	Ethernet InSite Flat Cable
Product Compatibility	SCU100 & SCU200
Rated Operational Current AC-15 (Ie)	0.7 A
Power Consumption	0 kW
Rated Frequency	50/60 Hz
Mounting Type	DIN-Rail
Depth	64.9 mm
Height	87 mm
Weight	0.045 kg
Width	17.4 mm
IP Rating	IP20
Ambient Temperature	Operation -25 ... 60 °C
Standards and Approvals	EN 61010-1 IEC 61010-1

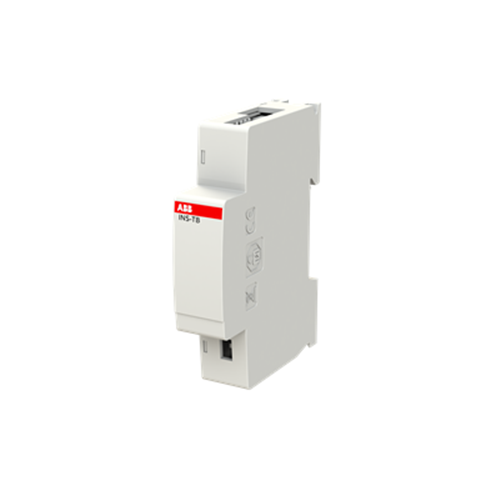

ABB INS-TB TAP-OFF BOX MODULE FOR INSITE SCU100 & SCU200
