Specifications

Brand	Circutor
Series	CMC B
Nominal Voltage (AC Primary)	220 … 690 V
Rated Insulation Voltage (Ui)	690 … 1000 V
Rated Frequency	50 … 60 Hz
Electrical Life	100000 cycles
ETIM 9.0 Class	EC001079
Coil Tension / Tolerance	230 V / 0.85 … 1.1 Un
Nominal Operating Current	87 A (400 V)
Cadence of Maneuver	100/h
Working Temperature	-25 … +55 ºC
Protection Class	IP 00
Depth	150 mm
Height	120 mm
Weight	0.85
Width	64.6 mm
Electrical Safety, Maximum Height (M)	2000
Relative Humidity (Without condensation)	5 … 95 %
Standards	IEC 60947-4-1, VDE 0660
Certifications	VDE

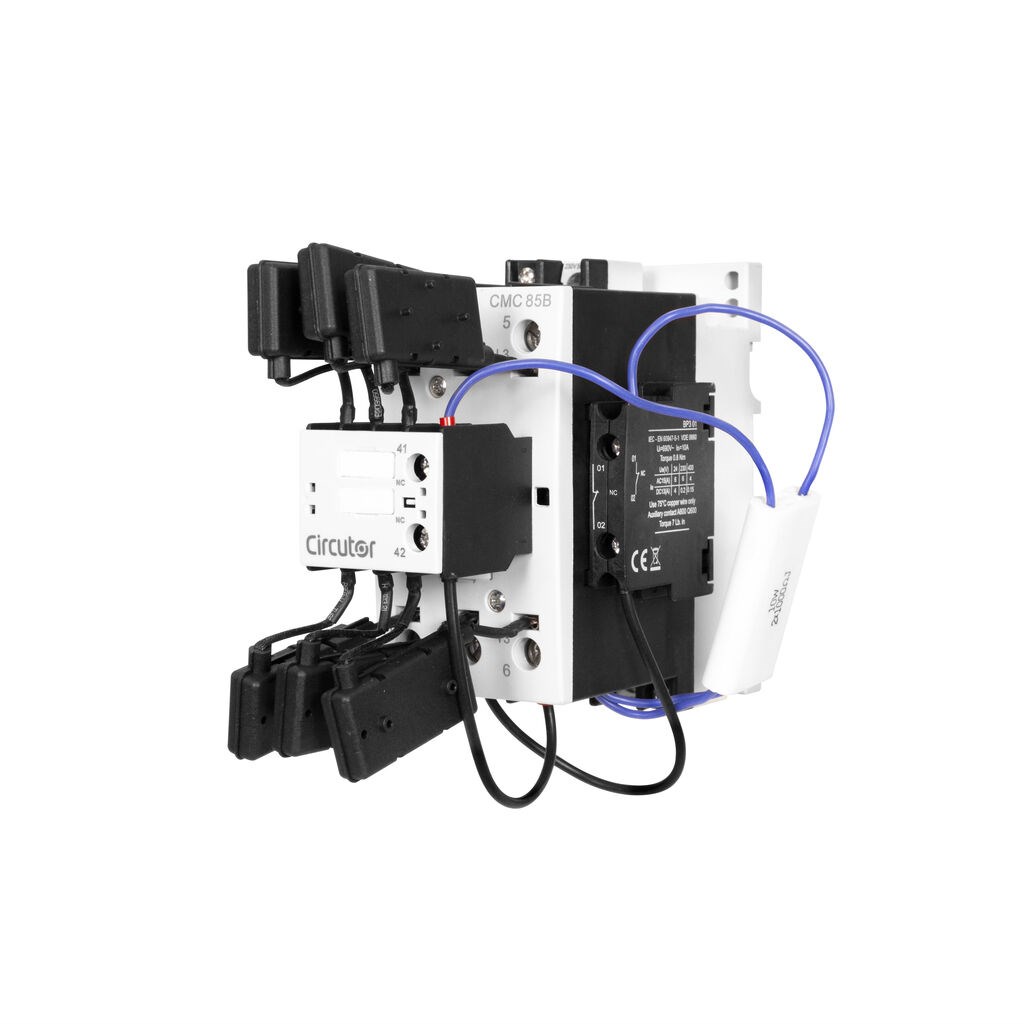

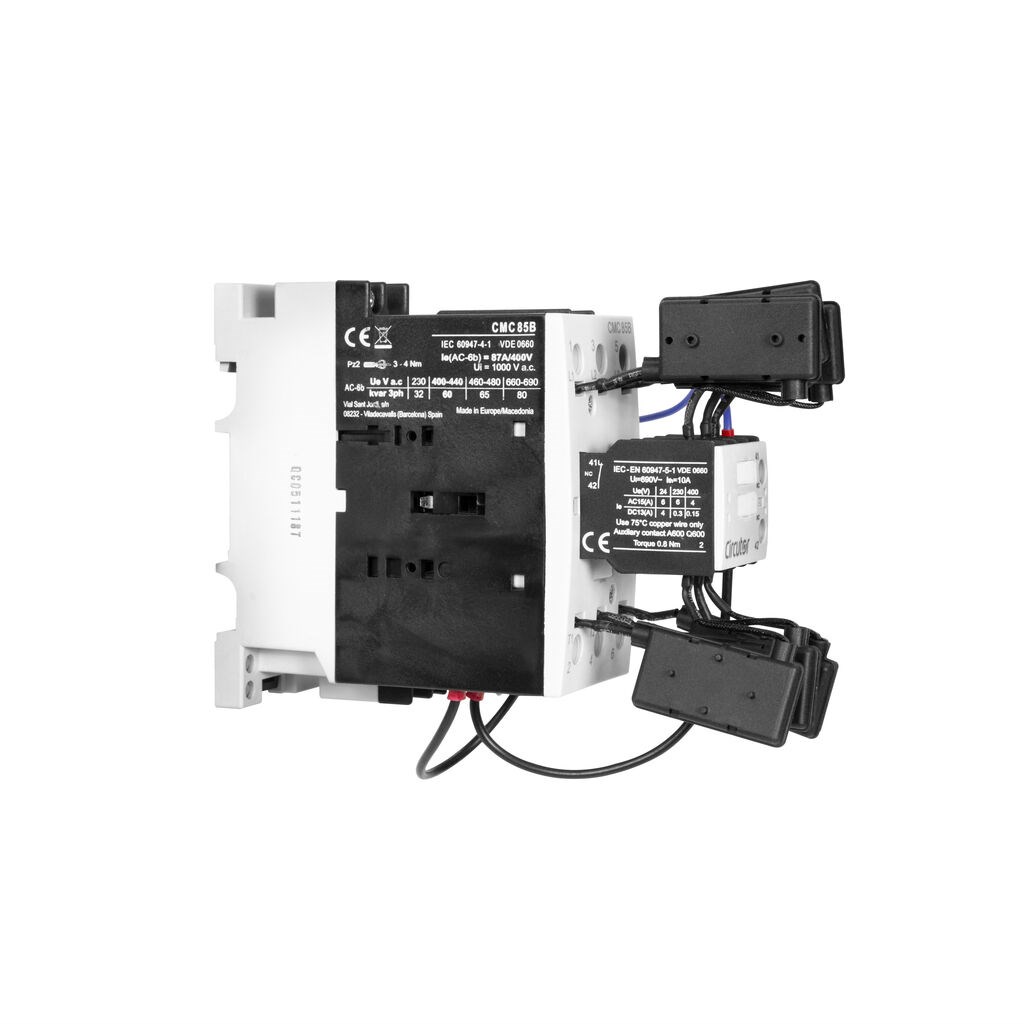

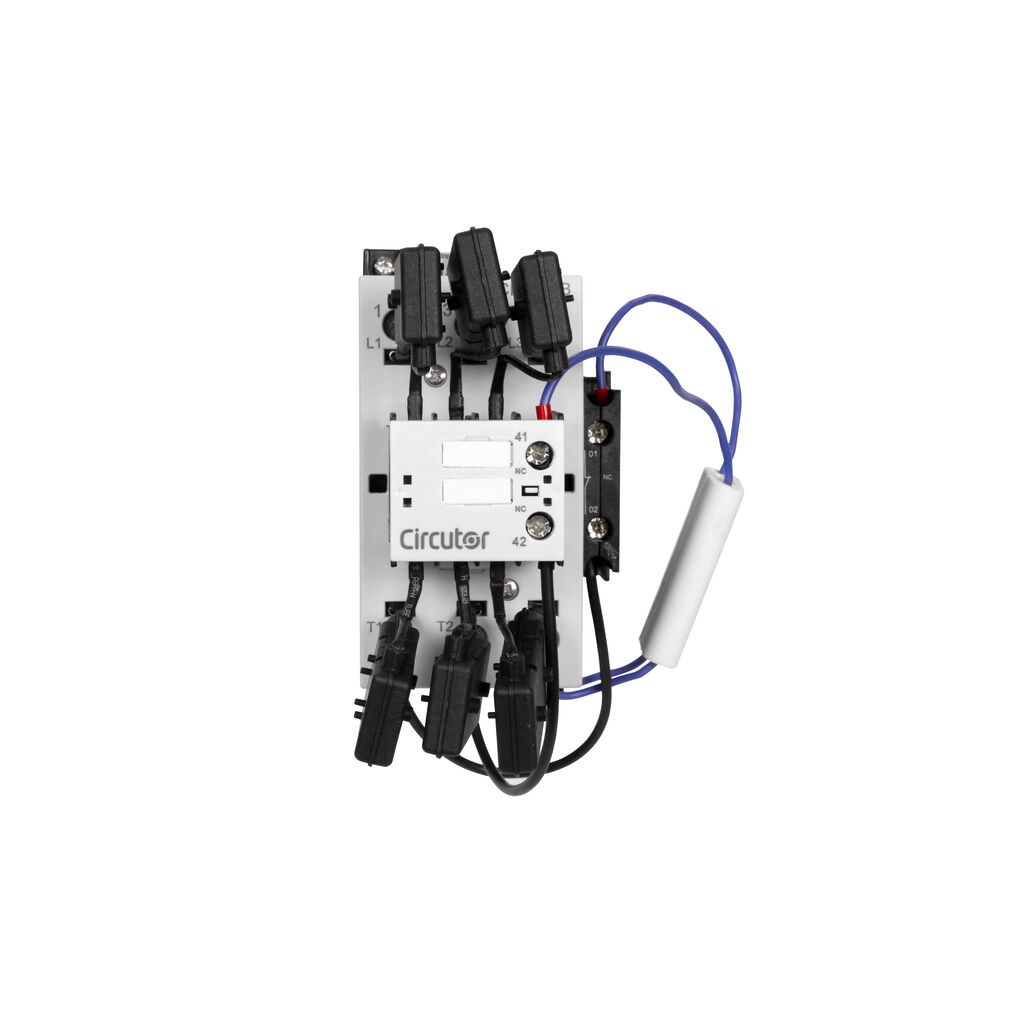

CIRCUTOR R281A3 CAPACITOR CONTACTOR 60kVAr @ 440V 50/60Hz CMC 85 B
