Specifications

Brand	Circutor
Series	CLZ-FP HD 50Hz
Max. Phase Current	400 x In
Rated Insulation Voltage (Ui)	3 / 12 kV
Rated Frequency	50 Hz
Fixing Screw Type	Faston 6.3 x 0.8 mm
ETIM 9.0 Class	EC002758
Voltage	440 V
Surge	10 % 8h in 24 h 15 % up to 30 min in 24 hours 20 % up to 5 min in 24 hours 30 % up to 1 min in 24 hours
Discharge Resistance	50 V / 1 min (0.5 - 30 kvar) 75 V / 3 min (33 - 50 kvar)
Losses (W)	Dielectric: < 0,2 W / kvar Total: < 0,4 W / kvar
Max. Transient Current	1.8 In
Circuit Breaker Type	Dielectric regeneration Expansion system
Envelope	Aluminum
Fastening/Setting	M12 fastening screws earth conductor
Thermal Management	Natural or forced according to cabinet design
Torque Setting	Earth: 5 Nm max
Working Temperature	Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 65 ºC, minimum: -50 ºC
Tolerance	-5 … +10 %
Installation, Location, Position	Vertical / Horizontal. Minimum distance between condensers 2 cm.

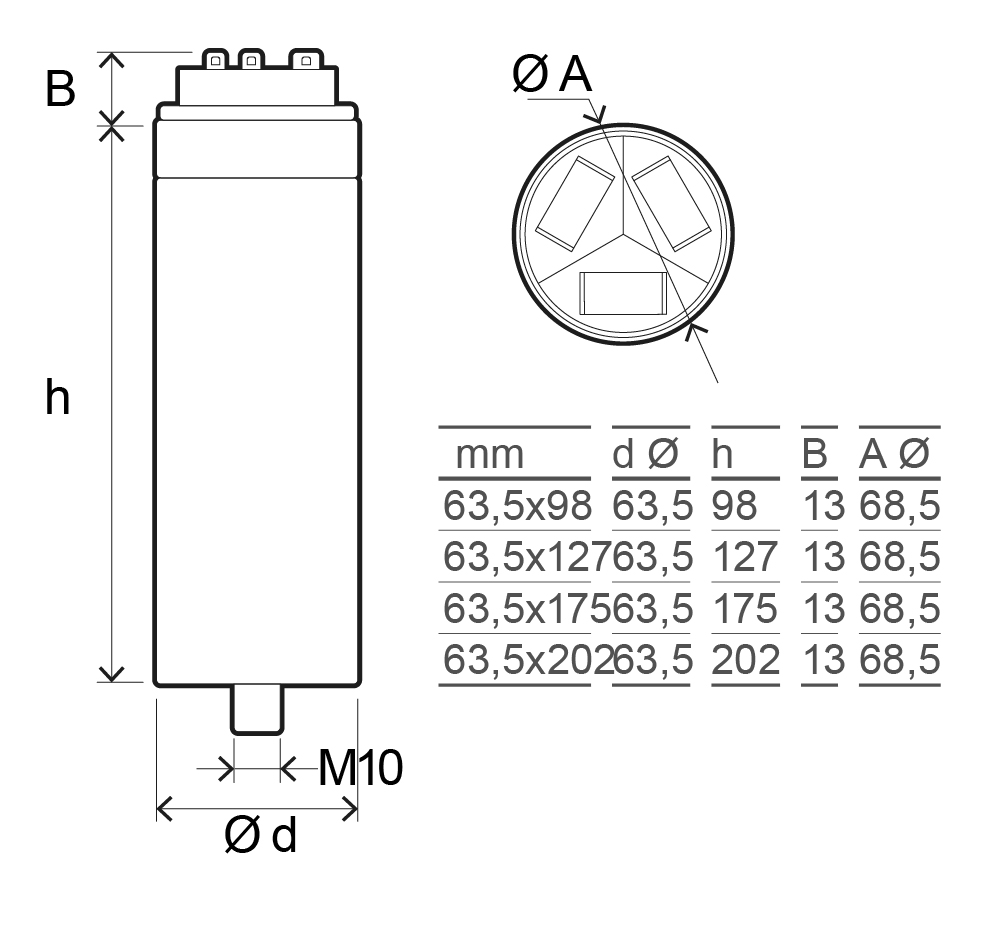

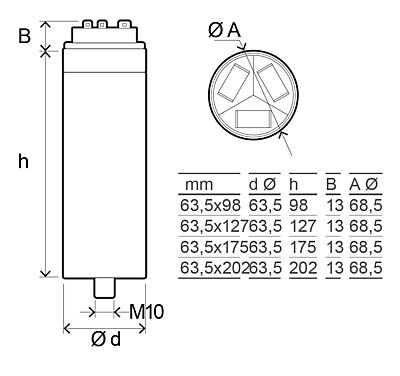

Depth	63.5 mm
Height	188 mm
Weight	0.615
Width	63.5 mm
Electrical Safety, Maximum Height (M)	4000
Relative Humidity (Without condensation)	95%
Standards	IEC 60831-1-1/2, IEC 70/7, UNE 20827, UNE 20010, BS 1650
Certifications	VDE 560

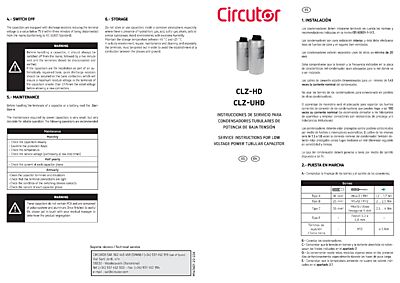

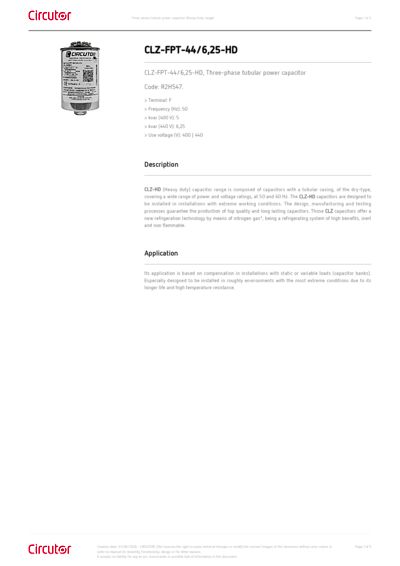

Documents
