Specifications

Brand	Circutor
Series	EMB-2PH
Rated Frequency	50 … 60 Hz
ETIM 9.0 Class	EC002024
Voltage	Up to 3 x 440 V~ (without detuned filters) Up to 3 x 415 V~ (with detuned filters)
Element	Fuses not included. External protection against overload and short circuits is required. 90°C thermostat
Du/Dt	RC protection at 1000 V/µs
Di/Dt	100 A/µs (L = 12 µH, not included, must be assembled in series with the condenser)
Thermal Management	Fan: auxiliary voltage at 1x230 V~ (at terminals A1, A2)
Working Temperature	80 ºC max. heatsink temperature
Protection Class	IP 00

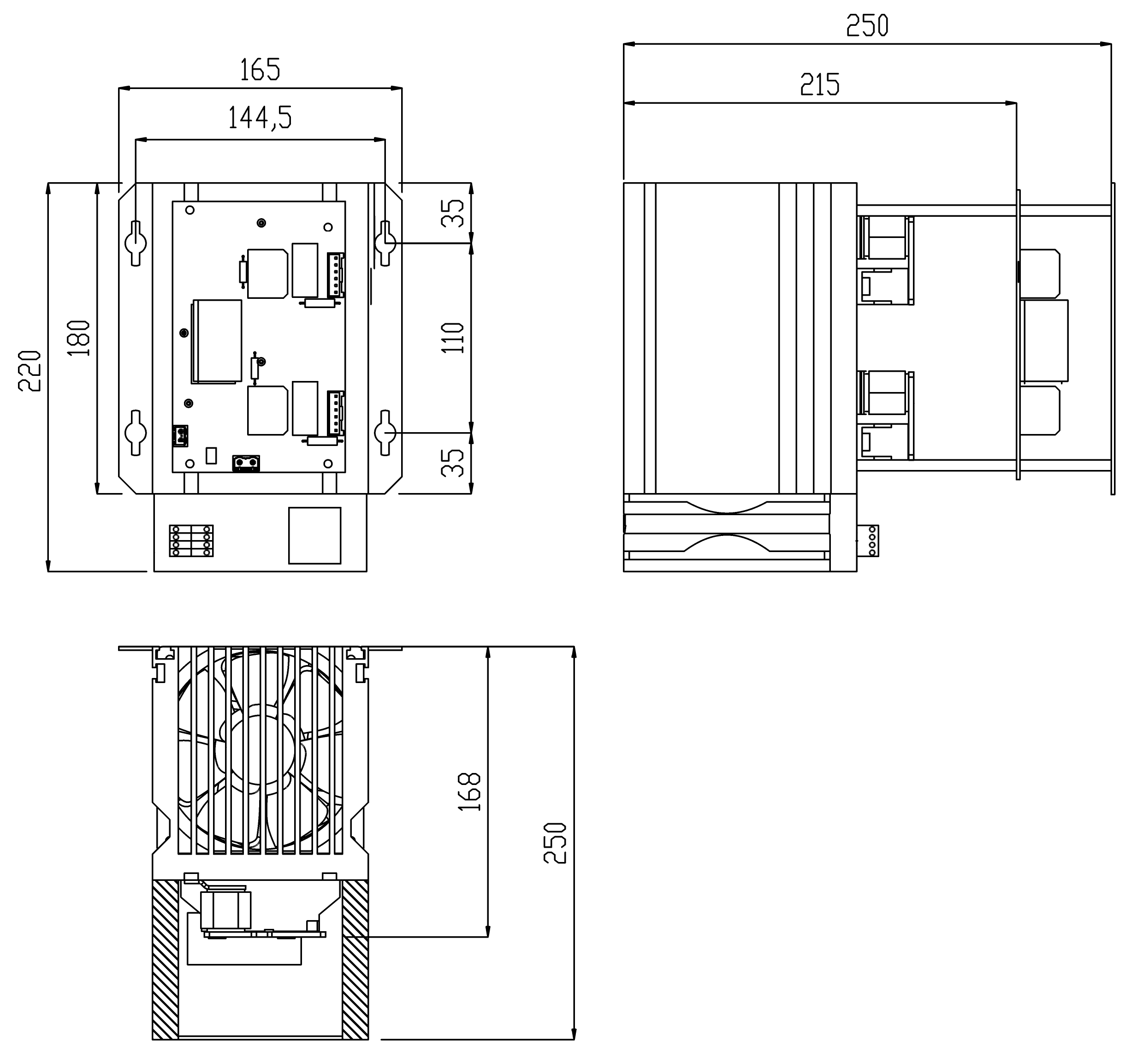

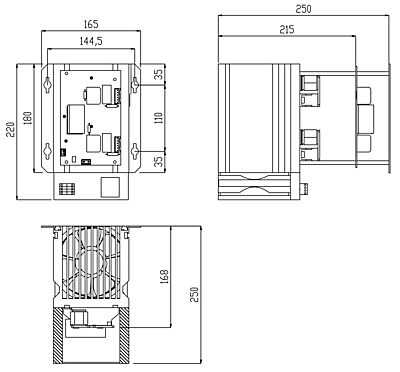

Depth	250 mm
Height	220 mm
Weight	4
Width	165 mm
Standards	IEC 61439

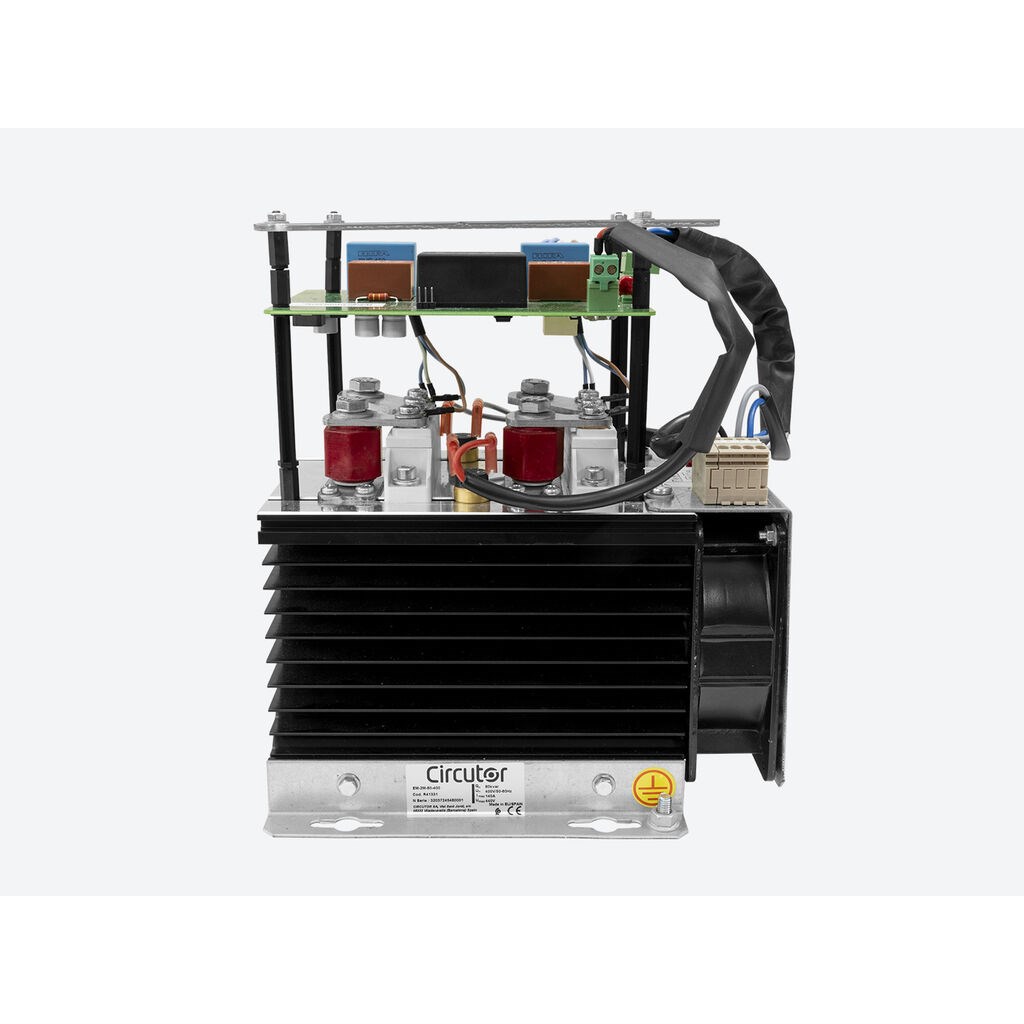

CIRCUTOR R4132M STATIC SWITCHING 2PH 80A 400V WALL EMB-M-2PH-80-400
