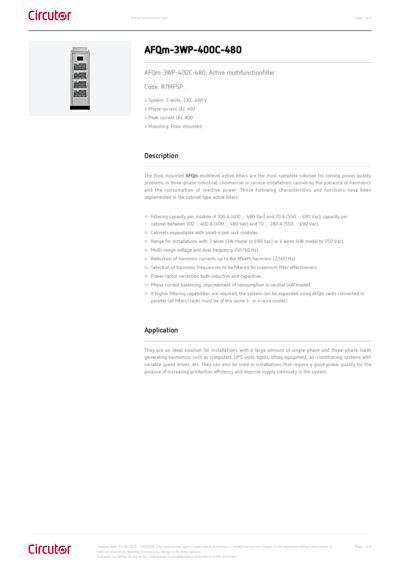

| Brand |
Circutor |
| Series |
AFQm-C |
| Connection Type |
Network: plate 40x10, Ground: Ring terminal 8 mm, Current: spring 2,5 mm2, Neutral: plate 100x10, Ethernet: RJ-45 |
| Max. Phase Current |
400 A (RMS) |
| Nominal Voltage (AC Primary) |
208 … 480 V~ F-F (± 10 %) |
| Earthing System |
TN, TT |
| Rated Frequency |
50 / 60 Hz (± 5 %) |
| Rated Power |
305200 VA |
| Rated Conditional Short-Circuit Current (Inc) |
40 kA |
| ETIM 9.0 Class |
EC002758 |
| Installation Category (AC Supply) |
4 kV, CAT III Class 1 |
| Rated Peak Current Ipk |
84 kA |
| Current Crest Factor |
2:1 |
| Transformation Ratio |
5 … 5000 / 5A |
| Voltage Harmonics (THD) |
25 % (max) |
| Technology / Type (Serial) |
RS-485 |
| Protocol (Serial) |
Modbus/RTU |
| Protocol (Network) |
TCP/IP, Modbus TCP |
| Filtering / Response Time |
2º … 50º harmonic (selectable) / < 100 µs |
| Parallel Assembly / Installation |
Up to 100 units, with different gauges.
Transformer connection only to the Master unit |
| Priority Scheduling |
Selectable |
| Phase Compensation |
Selectable |
| Envelope |
Free-standing sheet steel cabinet, for installation indoors, without removable parts. |
| Torque Setting |
Grid and Neutral: 45 Nm / Earth: 10 Nm |
| Cable Gauge at Current Terminals |
2.5 mm² |
| Cable Gauge at Power Supply Terminals |
Neutral and Ground: Ø 12 mm, |
| Communications Cable Cross-Section |
RS-485: 2.5 mm² |
| Working Temperature |
-10 ... +45 ºC |
| Protection Class |
IP 21 (IP 41 on demand) / IK10 |
| AC Power Consumption |
8280 W |
| Depth |
812 mm |
| Height |
1890 mm |
| Weight |
360 |
| Width |
608 mm |
| Electrical Safety, Maximum Height (M) |
3000 (2000 m without performance degradation) |
| Technology / Interface |
Ethernet |
| Relative Humidity (Without condensation) |
0 ... 95 % |
| Storage Temperature |
-20 ... +50 ºC |
| Display Type |
TFT color, 3.5" touchscreen |
| Standards |
IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007,IEC 61439-1:2011 |
| Rated Diversity Factor (RDF), Simultaneity |
1 |
| Reactive Power Compensation |
Selectable |
