Product Code: R7MM2F

Specifications

Brand	Circutor
Series	AFQm-M
Connection Type	Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45
Max. Phase Current	100 A (RMS)
Nominal Voltage (AC Primary)	208 … 480 V~ F-F (± 10 %)
Earthing System	TN, TT
Rated Frequency	50 / 60 Hz (± 5 %)
Rated Power	76300 VA
ETIM 9.0 Class	EC002758
Current Crest Factor	2:1
Transformation Ratio	5 … 5000 / 5A
Voltage Harmonics (THD)	25 % (max)
Technology / Type (Serial)	RS-485
Protocol (Serial)	Modbus/RTU
Protocol (Network)	TCP/IP, Modbus TCP
Filtering / Response Time	2º … 50º harmonic (selectable) / < 100 µs
Parallel Assembly / Installation	Up to 100 units, with different gauges. Transformer connection only to the Master unit
Priority Scheduling	selectable
Phase Compensation	Selectable
Envelope	Galvanized steel 1.5 mm
Torque Setting	RS-485: 0,5 … 0,6 Nm / Current: 0,5 … 0,6 Nm / Grid: 8…10 Nm / Earth: 10 … 14 Nm
Cable Gauge at Current Terminals	2.5 mm²
Cable Gauge at Power Supply Terminals	Grid: Ø 23 mm
Communications Cable Cross-Section	RS-485: 2.5 mm²
Working Temperature	-10 ... +45 ºC
Protection Class	IP 20
AC Power Consumption	2070 W
Depth	288 mm
Height	745 mm
Weight	58
Width	439 mm
Electrical Safety, Maximum Height (M)	3000 (2000 m without performance degradation)
Technology / Interface	Ethernet
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 ... +50 ºC
Display Type	TFT color, 3.5" touchscreen
Standards	IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007,IEC 61439-1:2011
Reactive Power Compensation	selectable

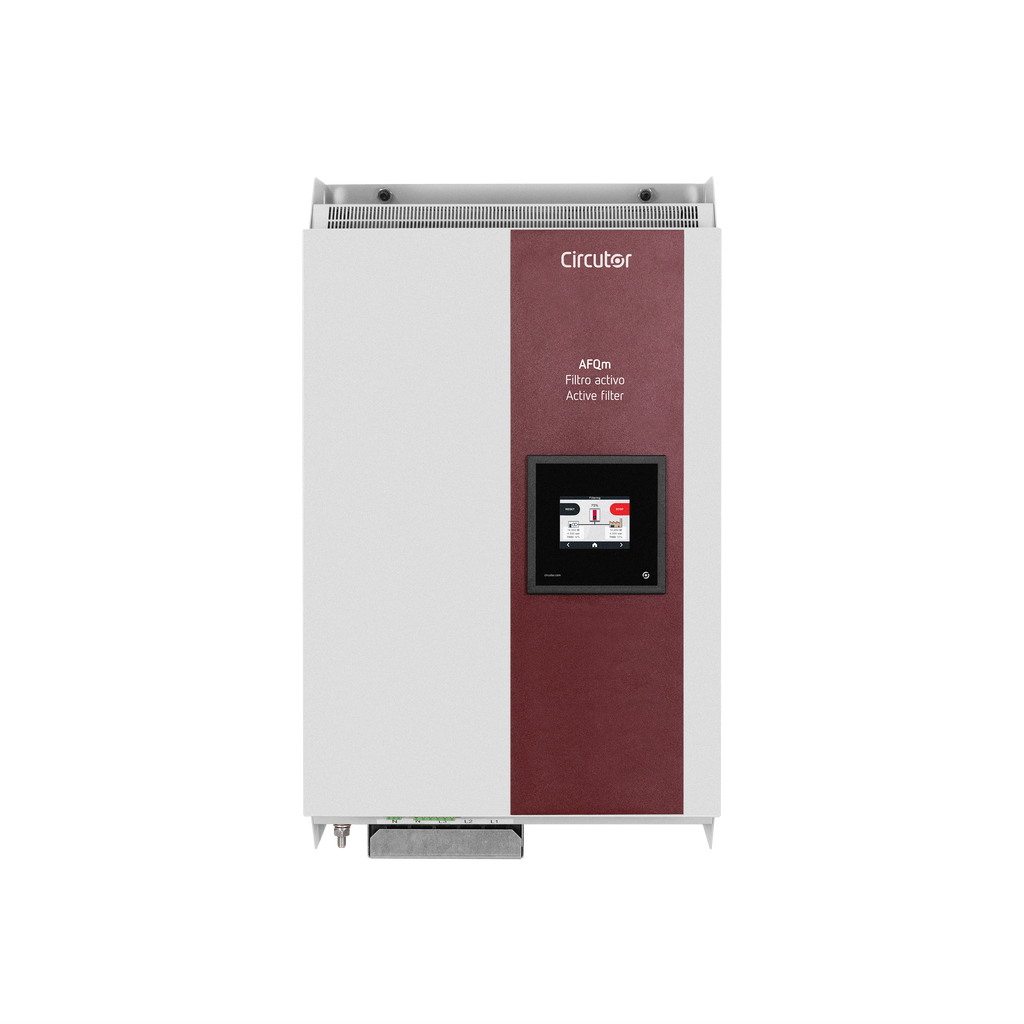

CIRCUTOR R7MM2F AFQM ACTIVE FILTER 100A 480V 3-WIRE WALL-MOUNT AFQm-3WF-100M-480

Product Code: R7MM2F

Need full access to stock, pricing, and ordering?

Specifications

Documents

IPD Product Catalogue V17

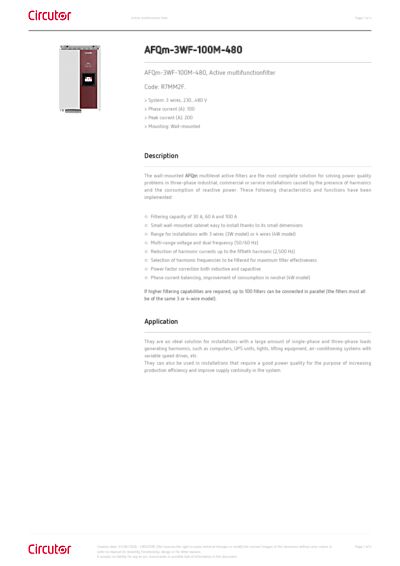

Circutor Datasheet

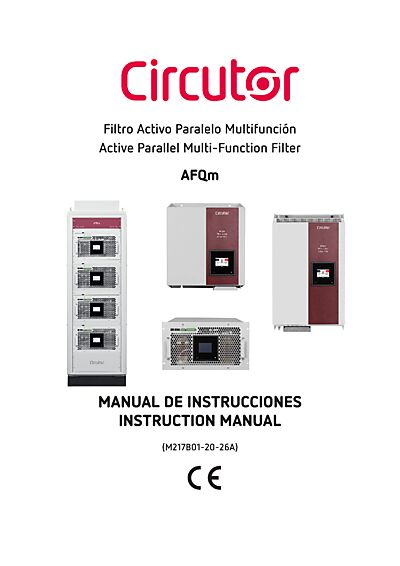

Circutor User Manual
