Specifications

Product Type	DIN rail power supplies
Brand	PULS
Series	Q-Series
Input Voltage AC	380-480V
Output Current - Nominal	40A
Output Current - Range	41 – 34.3A
Output Power	960 W
Output Voltage - Nominal	24V
Output Voltage - Range	24 - 28V
Efficiency	95.3 / 95.2%
Terminal Type	Screw terminals
Housing Material	Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style	DIN rail
Depth	127mm
Height	124mm
Weight	1500 g
Width	110mm
Approvals / Conformity	UL 61010-2-201,IEC 61010-2-201,SEMI F47 ,VDMA 24364,CE,REACH,WEEE
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20

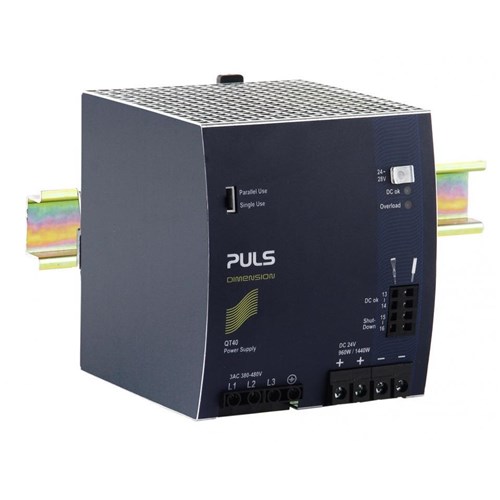

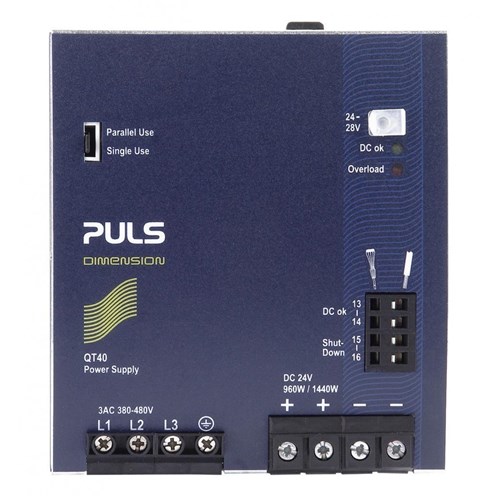

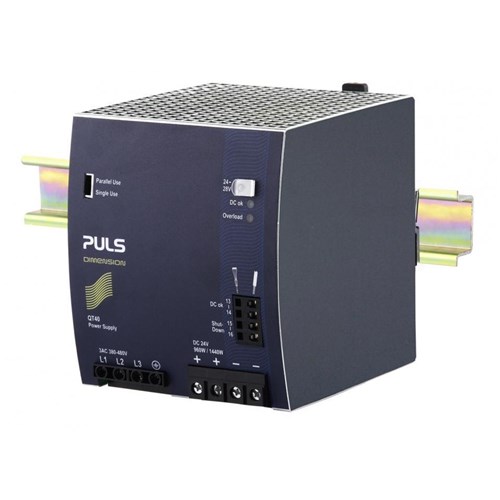

Puls QT40.242 Power Supply 3PH 380-480VAC 24VDC 40A 960 Watt 47.3 Watt DIN Rail Mount Screw Terminal IP20
