Specifications

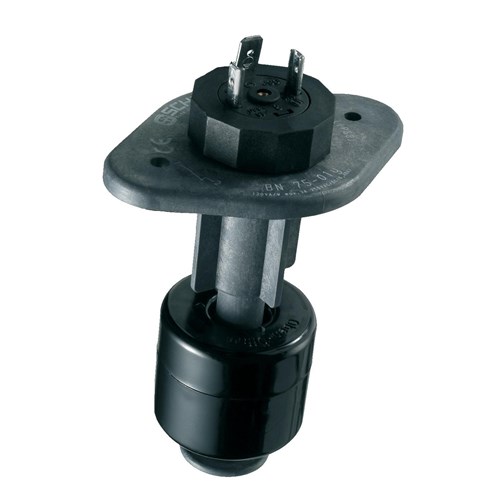

Product Type	BN 75-10Y
Brand	Schmersal
Series	BN 75
Configuration Type	Normally open contact (NO)
No. of N/C Contacts	0
No. of N/O Contacts	1
Switching Current	1 A
Switching Element	Reed Contacts
Switching Voltage	220 V AC
Type of Switching Output	Magnetic Drive
Contact Configuration	NO+NC
Electrical Connection	Connector
Rated Current	1 A
Rated Voltage	220 VAC
Switching Capacity (AC)	60 W
Mechanical Durability	1000000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Depth	55 mm
Height	99.5 mm
Weight	74 g
Width	80 mm
Operating Temperature	-25 to 80 degC
IP Rating	IP65
