Specifications

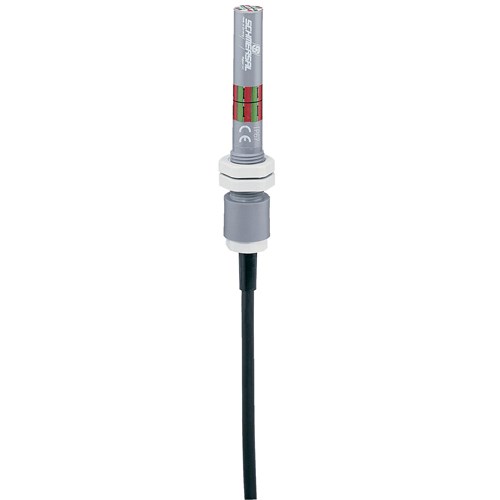

Product Type	BN 65-10Z
Brand	Schmersal
Series	BN 65
Cable Length	1 m
Configuration Type	Normally open contact (NO)
No. of N/C Contacts	0
No. of N/O Contacts	1
Switching Current	3 A
Switching Element	Reed Contacts
Switching Voltage	250 V AC
Type of Switching Output	Magnetic Drive
Accuracy	0.3 mm
Contact Configuration	NO
Electrical Connection	Pre-wired cable
Rated Current	3 A
Rated Voltage	250 VAC
Switching Capacity (AC)	120 W
Mechanical Durability	1000000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	103 mm
Weight	74 g
Operating Temperature	-25 to 75 degC
IP Rating	IP67
Standards and Approvals	cULus
