Specifications

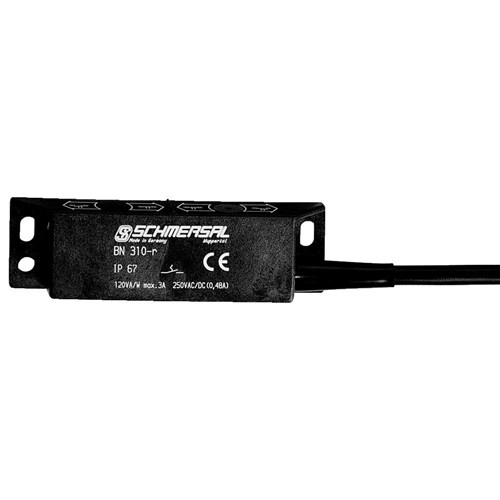

Product Type	BN 31-RZ 4,0M
Brand	Schmersal
Series	BN 31/310
Cable Length	4 m
Switching Current	3 A
Switching Element	Reed Contacts
Switching Voltage	250 V AC, 250 V DC
Type of Switching Output	Magnetic Drive
Accuracy	0.3 mm
Electrical Connection	Pre-wired cable
Rated Current	3 A
Switching Capacity (AC)	80 W
Mechanical Durability	1000000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	25 mm
Weight	200 g
Width	88 mm
Operating Temperature	-25 to 75 degC
IP Rating	IP67
