Specifications

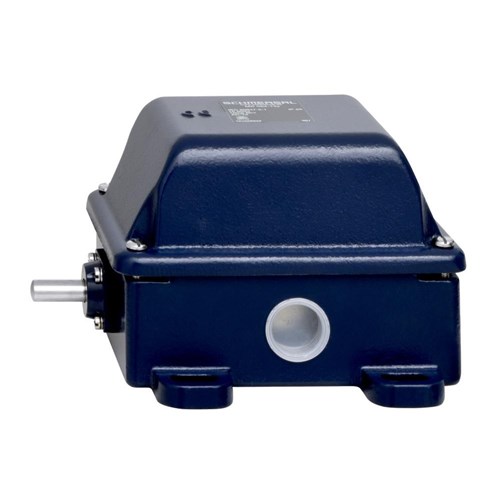

Product Type	Position Switch
Brand	SCHMERSAL
Actuating Speed	336 mm/min
Actuator Type	Magnet
Bounce Duration	Bounce duration in accordance with actuating speed
Cable Cross Section	0.5 sq-mm
Cable Entry	Without cable gland
Connector Type	Connector plug M12, 4-pole
Contact Configuration	NC
Contact Material	Silver Nickel Alloy
Degree of Protection	IP67
Depth	115 mm
Design	Straight
Enclosure Coating Material	Painted
Front Ring Material	Aluminium
Fuse Rating	2 A gG D-Fuse
Height	189 mm
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Mechanical Life	5000000 Operations
Mounting Type	Flange
Number of Auxiliary Contacts	1
Operational Temperature	-25 to 70 deg C
Overvoltage Category	3
Rated Current	2000 mA
Sealing Type	Lip gaskets / Membrane
Standards and Approvals	BG-GS-ET-14, ENIEC 60947-5-3
Switching Type	Snap Action
Terminal Type	M20 x 1.5 Screw
Version	Round \| Mushroom button
Weight	210 g
Width	295 mm
