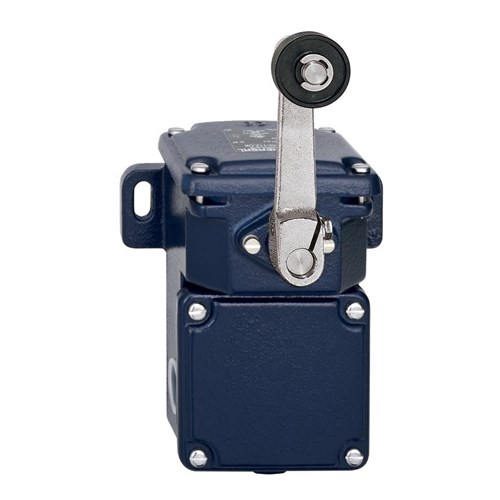

Schmersal 101057989 Position Switch Grey Cast Iron Galvanized Gold Plated Silver Contact

Product Code: 101057989

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	250 roller lever D
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Actuator Type	Roller lever
Cable Cross Section	2.5 sq-mm
Contact Material	Gold-plated silver
Housing Material	Grey cast iron, galvanised
Depth	125mm
Height	257mm
Weight	3,885g
Width	146mm
IP Rating	IP67
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	CCC, cULus, EC000030, ENIEC 60947-5-1
