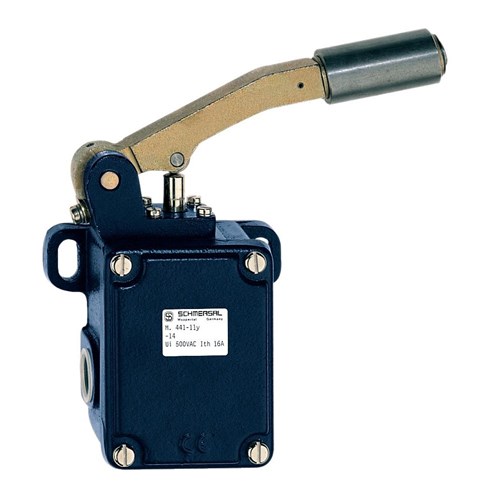

Schmersal 101058315 Slack Wire Switch 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101058315

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	441
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4A (AC-15)
Rated Voltage	230V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 2.5 mm
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Grey cast iron, galvanised
Depth	63mm
Height	181mm
Weight	2,040g
Width	106mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
