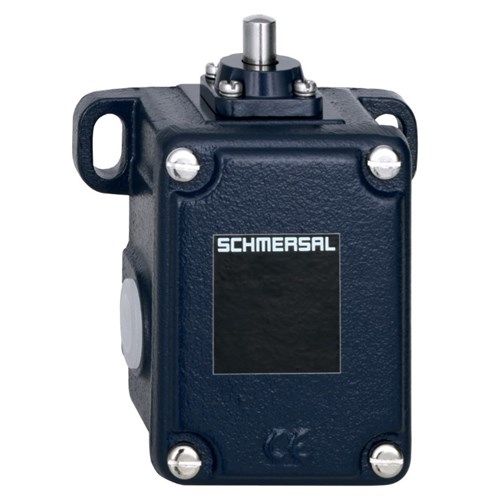

Schmersal 101058383 Position Switch Plunger Cast Iron Galvanized

Product Code: 101058383

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	441 plunger S
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Actuator Type	Plunger
Cable Cross Section	13 AWG
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Depth	63mm
Height	125mm
Weight	1,232 g
Width	106mm
IP Rating	IP65
Ambient Temperature	-40 ... +200 °C
Standards and Approvals	ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet
