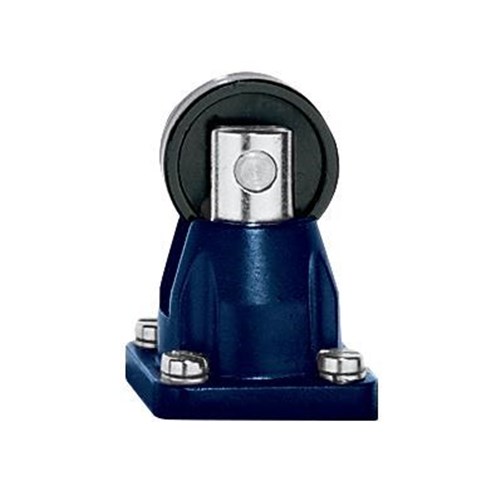

Schmersal 101058790 Medium-Duty Position Switch Roller Plunger 1NO Grey Cast Iron Galvanized Silver Contact

Product Code: 101058790

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	452 roller plunger R
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Contact Configuration	1NO
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Actuator Type	Roller plunger
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 6 mm
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Grey cast iron, galvanised
Depth	64mm
Height	173mm
Weight	1,600g
Width	118mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
