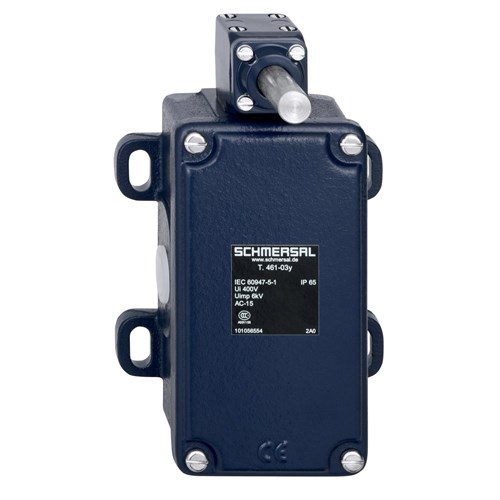

Schmersal 101059160 Medium-Duty Position Switch Offset Roller Lever NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059160

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	461 offset roller lever J
No. of N/C Contacts	3
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Contact Configuration	NC
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Actuator Type	Offset roller lever
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 6 mm
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Grey cast iron, galvanised
Depth	64mm
Height	235 mm
Weight	2,200 g
Width	118mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	ENIEC 60947-5-1
