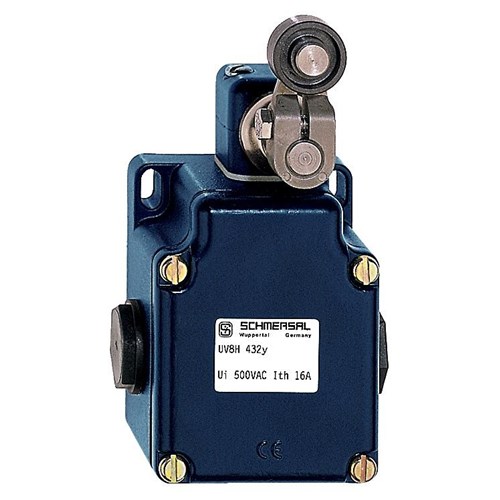

Schmersal 101060548 Position Switch Roller Lever NC Die Cast Light Alloy Silver Contact

Product Code: 101060548

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	U 432 roller lever 8H
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	500 V
Type of Switching Output	Slow Action
Contact Configuration	NC
Rated Current	16 A
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Actuator Type	Roller lever
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 1.5 mm
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Light alloy die-casting
Depth	50mm
Height	131mm
Weight	407 g
Width	62mm
IP Rating	IP65
Ambient Temperature	-20 ... +60 °C
Standards and Approvals	ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

Instructions

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
