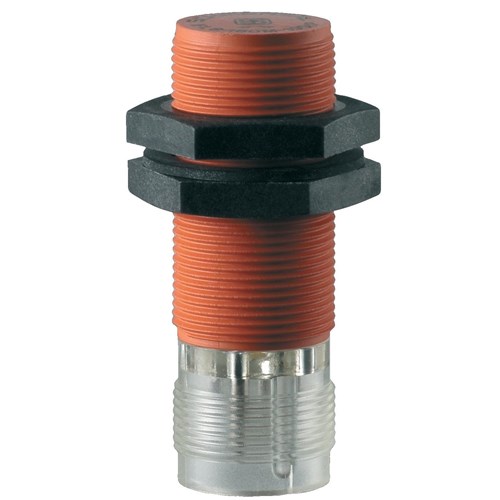

Schmersal 101085339 Inductive Proximity Switch 8mm NO

Product Code: 101085339

1

Specifications

Product Type	IFL 8-180M-10STP
Brand	Schmersal
Series	IFL - M18
Cable Length	2 m
Connection Type	M18 Connector
No. of N/C Contacts	0
No. of N/O Contacts	1
Switching Current	200 mA
Switching Voltage	10 to 30 V DC
Type of Actuation	Inductive
Electrical Connection	Connector M18
Rated Current	200 mA
Rated Voltage	10-30 VDC
Switching Distance	8 mm
Housing Material	Plastic
Material	Plastic
Mounting Type	Not Flush
Depth	50.6 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP67
Standards and Approvals	DIN VDE 0660-208 EN IEC 60947-5-2

Documents

IPD Product Catalogue V17

Instructions

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
