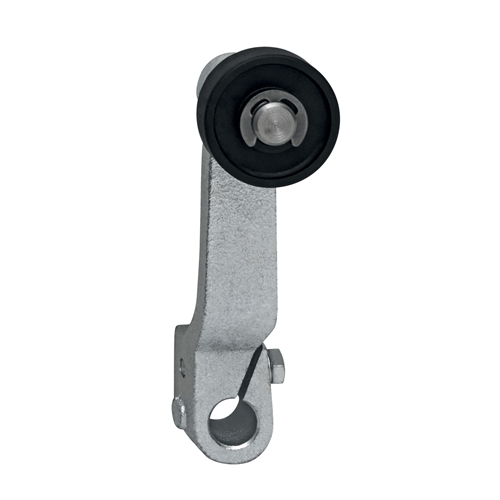

Schmersal 101092229 Miniature Switch Roller Lever NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101092229

1

Specifications

Product Type	Micro Switch
Brand	Schmersal
No. of N/C Contacts	6
Rated Insulation Voltage (Ui)	500 V
Switching Element	3 NC contacts / 3 NC contacts
Switching Principle	Slow action
Type of Switching Output	Slow Action
Contact Configuration	NC
Rated Current	10 A
Rated Voltage	230 VAC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Operations
Thermal Test Current	25 A
Actuator Type	Roller lever
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 4 mm
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Depth	190 mm
Height	143 mm
Weight	4946 g
Width	194 mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	cULus, EC000030, ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
