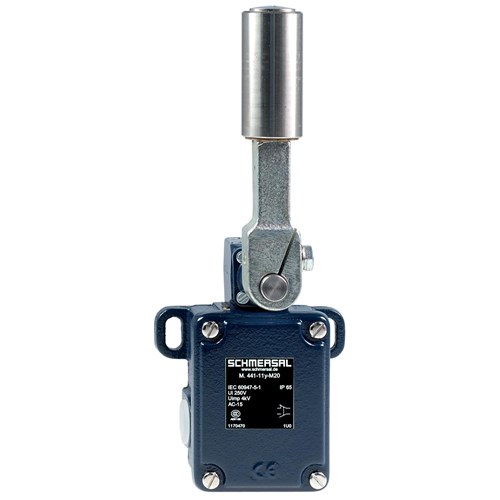

Schmersal 101092366 Belt Alignment Switch 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101092366

1

Specifications

Product Type	Belt Alignment Switch
Brand	Schmersal
Series	441 Belt Alignment Switch
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 VAC
Type of Switching Output	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4A
Rated Voltage	230VAC
Mechanical Durability	10000000 Operations
Thermal Test Current	16 A
Connecting Capacity	(2) 2.5 mm
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Weight	2049 g
IP Rating	IP65
Ambient Temperature	-40 ... +90 °C
Standards and Approvals	CCC, EC000030, ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
