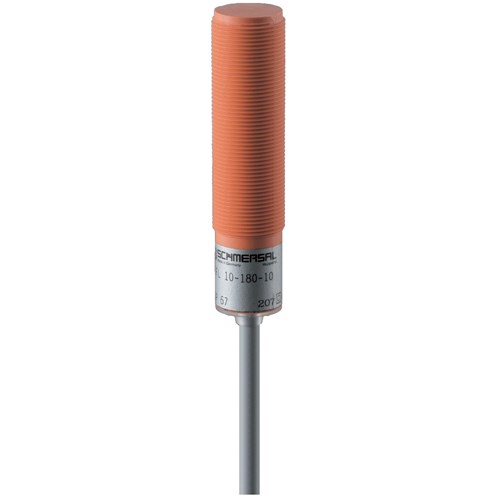

Schmersal 101092423 Inductive Proximity Switch 10mm NO 2m L Cable

Product Code: 101092423

1

Specifications

Product Type	IFL 10-180-10
Brand	Schmersal
Series	IFL - M18
Cable Length	2 m
Connection Type	H03VV-F Cable
No. of N/C Contacts	0
No. of N/O Contacts	1
Over Voltage Category	3
Switching Current	500 mA
Switching Voltage	15 to 250 V AC
Type of Actuation	Inductive
Electrical Connection	Cable H03VV-F
Rated Current	10 mA
Rated Voltage	15-250 VAC
Switching Distance	10 mm
Terminal Type	Screw terminals M20 x 1.5
Actuator Type	Roller plunger
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Plastic
Material	Plastic
Mounting Type	Not Flush
Depth	79 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP67
Standards and Approvals	DIN VDE 0660-208 EN IEC 60947-5-2

Documents

IPD Product Catalogue V17

Instructions

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
