Specifications

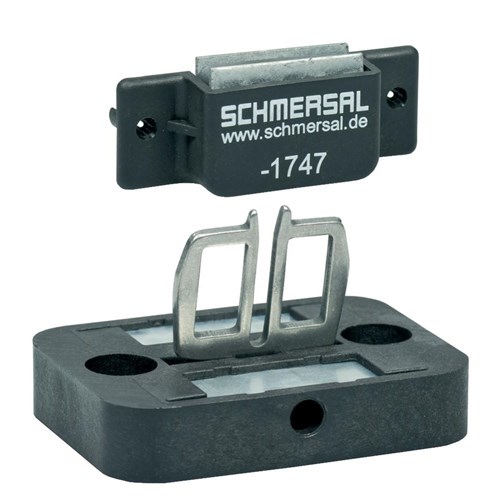

Product Type	Actuator With Magnetic Latch Safety Switch
Brand	SCHMERSAL
Series	AZ15/16
Actuating Speed	27 mm/min
Actuator Type	Offset Roller Lever
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP66, IP67
Depth	121 mm
Enclosure Coating Material	Painted
Height	80 mm
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Mounting Type	Screw
Operational Temperature	-30 to 55 deg C
Overvoltage Category	3
Rated Current	700 mA
Sensor Size	33 mm L x 92.5 mm H
Standards and Approvals	EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5
Width	165 mm
