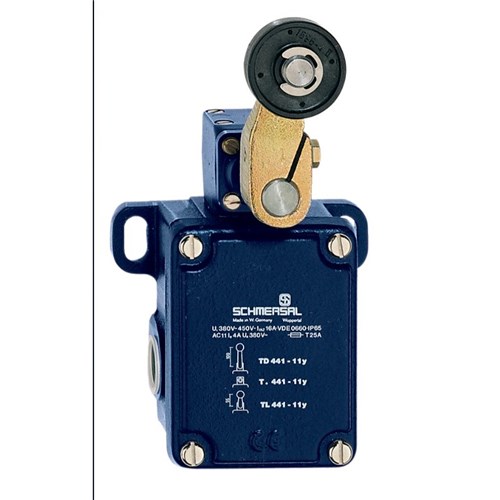

Schmersal 101096133 Medium-Duty Position Switch Roller Plunger Grey Cast Iron Galvanised

Product Code: 101096133

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	441 roller plunger R
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Type of Switching Output	Mechanical
Rated Current	4A (AC-15)
Rated Voltage	250V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	5000000 Operations
Thermal Test Current	16A
Actuator Type	Roller plunger
Cable Cross Section	13 AWG
Connecting Capacity	(2) 2.5 mm
Contact Material	AgSnO
Housing Material	Grey cast iron, galvanised
Depth	63mm
Height	145mm
Weight	1,370 g
Width	106mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	EN IEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
