Specifications

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	1.5 m
Contact Configuration	1NO+1NC
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Operational Temperature	70 deg C
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Sensor Size	13 mm L x 88 mm W x 25 mm H
Shock Resistance	30 g/11 ms
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm

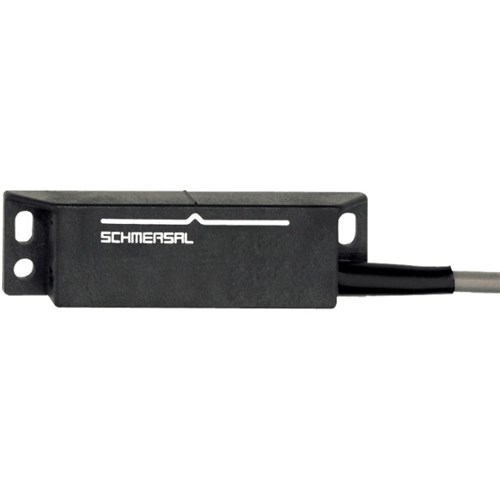

Schmersal 101117197 Magnetic Safety Sensor 1NO+1NC 1.5m Cable
