Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 33
Cable Length	3 m
No. of N/C Contacts	2
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	NO+NC
Rated Current	0.4 A
Rated Power	10 VA
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	1000000 Cycles
Actuator Type	BPS 33; BPS 33-2326
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Snap
Shock Resistance acc. To IEC/EN 60068-2-27	50 g/6 ms
Depth	13 mm
Height	25 mm
Weight	125 g
Width	88 mm
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	EC000030
Enclosure Dimensions	38 mm L x 611 mm H

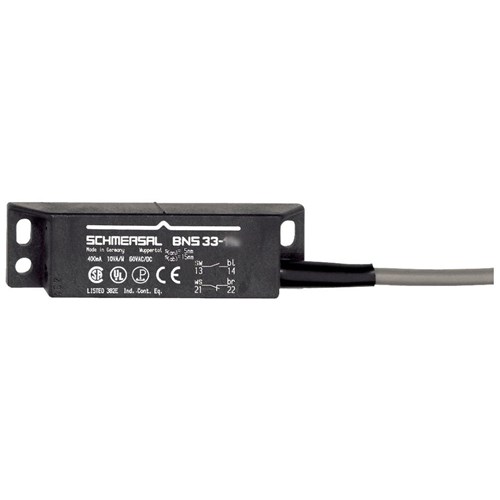

Schmersal 101118818 Magnetic Safety Sensor NO+NC 10m Cable
