Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 300
Cable Length	6 m
No. of N/C Contacts	1
No. of N/O Contacts	0
Contact Configuration	1NO+1NC
Rated Current	0.125
Rated Frequency	5 Hz
Rated Power	750 W
Rated Voltage	24 V DC
Actuator Type	BPS 303; BPS 300; BPS 303 SS
Housing Material	Glass-fibre, reinforced thermoplastic
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/11 ms
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	78 mm
Weight	450 g
Size	0.75 sq-mm
Operating Temperature	-25 to +55 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14, cULus, EN IEC 60947-5-3
Enclosure Dimensions	78 mm L

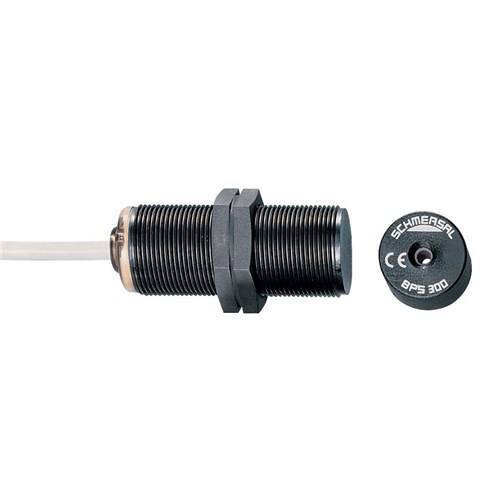

Schmersal 101122120 Magnetic Safety Sensor 1NO+1NC 6m Cable
