Specifications

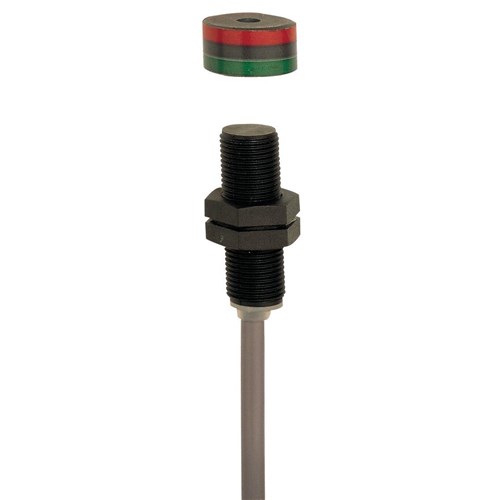

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 120
Cable Length	1 m
No. of N/C Contacts	2
No. of N/O Contacts	1
Rated Current	0.25 A
Rated Frequency	5 Hz
Rated Power	3 W
Rated Voltage	100 V AC/DC
Mechanical Durability	25000000 Cycles
Actuator Type	BP 10; BP 15 SS; BP 8; BP 6
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	38.5 mm
Weight	50 g
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	EN ISO 13849-1
Enclosure Dimensions	38.5 mm L
