Specifications

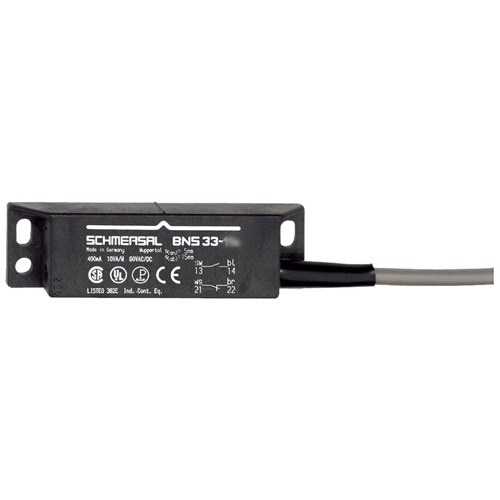

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 33
Cable Length	4 m
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Mechanical Durability	25000000 Cycles
Actuator Type	BPS 33; BPS 33-2326
Housing Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Not Flush
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	25 mm
Weight	165 g
Width	88 mm
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Enclosure Dimensions	13 mm L x 88 mm W x 25 mm H
