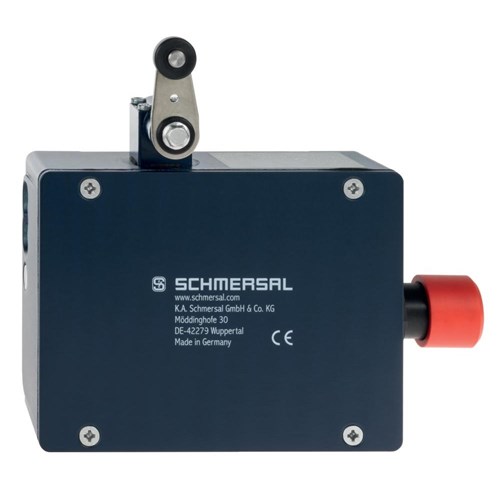

Schmersal 101136087 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101136087

1

Specifications

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 415
No. of N/C Contacts	2
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action
Contact Configuration	NO+NC
Rated Current	6 A
Rated Power	10 W
Rated Voltage	24 V AC/DC
Mechanical Durability	1000000 Cycles
Cable Entry	2 x M20 x 1.5
Contact Material	Silver
Enclosure Material	Painted
Guard Locking Force	3,500 N
Housing Material	Aluminium
Depth	50 mm
Height	120 mm
Weight	985 g
Operating Temperature	-25_+50
IP Rating	IP54
Standards and Approvals	cULus, UKCA
Enclosure Dimensions	50 mm L x 120 mm H
