Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 300
Cable Length	1.5 m
No. of N/C Contacts	1
No. of N/O Contacts	0
Rated Current	0.125
Rated Frequency	5 Hz
Rated Power	750 W
Rated Voltage	24 V DC
Actuator Type	BPS 303; BPS 300; BPS 303 SS
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	78 mm
Weight	145 g
Size	0.75 sq-mm
Operating Temperature	-25 to +55 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14, cULus, EN IEC 60947-5-3
Enclosure Dimensions	78 mm L

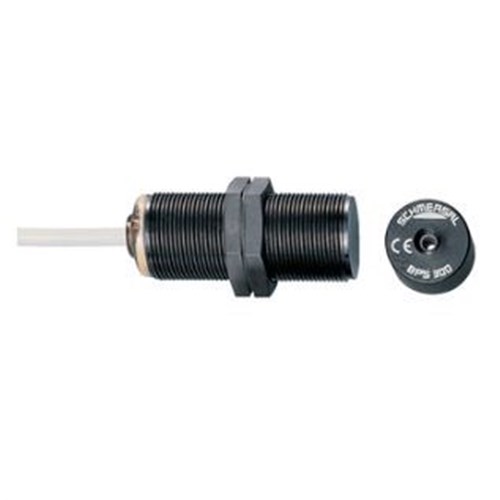

Schmersal 101136217 Magnetic Safety Sensor 1.5m Cable
