Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 250
Cable Length	6 m
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	0.1 A
Rated Frequency	5 Hz
Rated Power	1 W
Rated Voltage	24 V DC
Actuator Type	BPS 250
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	25 mm
Weight	215 g
Width	33 mm
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14, cULus, EN IEC 60947-5-3
Enclosure Dimensions	13 mm L x 33 mm W x 25 mm H

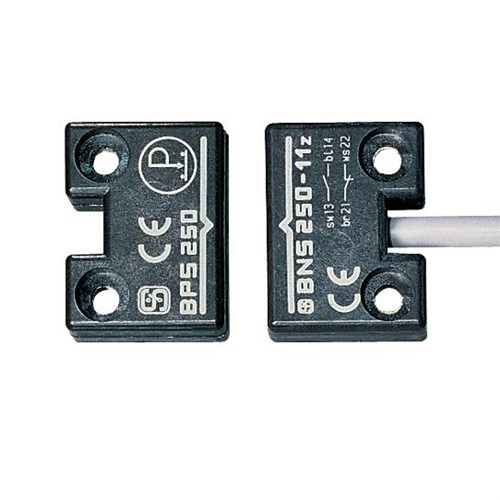

Schmersal 101138010 Magnetic Safety Sensor 6m Cable
