Specifications

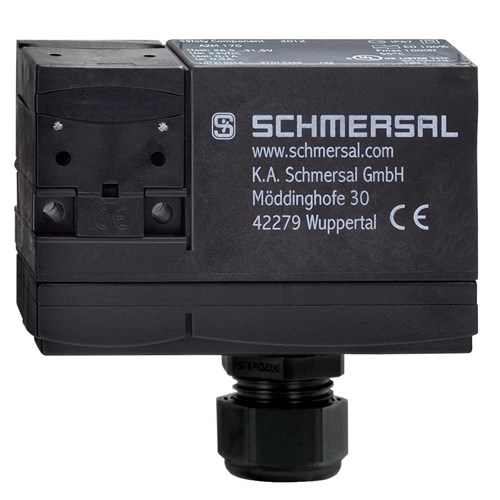

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 170
No. of N/C Contacts	1
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	1000 A
Rated Voltage	24 V AC/DC
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	5000000 Cycles
Actuator Type	Magnet
Cable Entry	1 x M20 x 1.5
Contact Material	Silver
Device Construction	Stainless Steel
Enclosure Material	Painted
Guard Locking Force	1,000 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Mounting Type	Screw
Depth	30 mm
Height	84 mm
Weight	278 g
Width	90 mm
Size	13 AWG
Operating Temperature	-25 to 70 °C
IP Rating	IP67
Standards and Approvals	IFA, cULus, CCC, UKCA
Enclosure Dimensions	24 mm L x 25 mm H
