Specifications

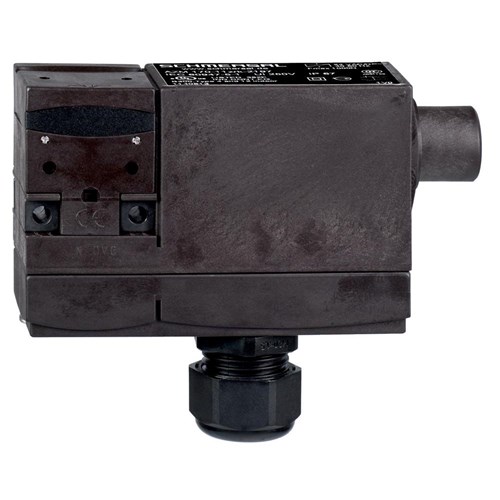

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 170
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action
Rated Voltage	24 V AC/DC
Mechanical Durability	1000000 Cycles
Cable Entry	1 x M20 x 1.5
Contact Material	Silver
Guard Locking Force	1,000 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Depth	30 mm
Height	84 mm
Weight	285 g
Width	108 mm
Operating Temperature	-25 to 70 °C
IP Rating	IP67
Standards and Approvals	IFA, cULus, CCC, UKCA
Enclosure Dimensions	30 mm L x 108 mm W x 84 mm H
