Specifications

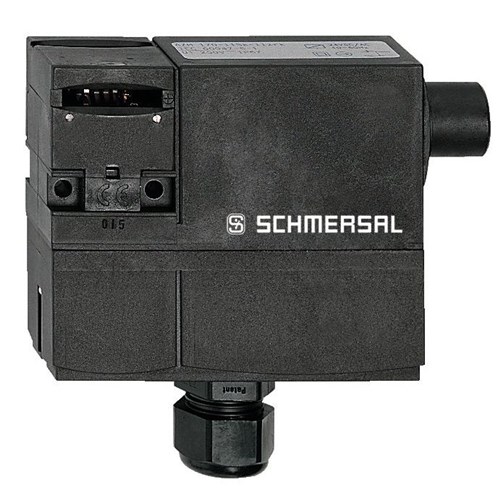

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 170
No. of N/C Contacts	2
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	NC
Rated Current	1000 A
Rated Voltage	24 V AC/DC
Terminal Type	Cable
Mechanical Durability	1000000 Cycles
Actuator Type	Pull Strap
Cable Entry	1 x M20 x 1.5
Contact Material	Silver
Enclosure Material	Painted
Guard Locking Force	1,000 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/11 ms
Depth	30 mm
Height	100.5 mm
Weight	305 g
Width	108 mm
Size	13 AWG
Operating Temperature	-25 to 70 °C
IP Rating	IP67
Standards and Approvals	IFA, cULus, CCC, UKCA
Enclosure Dimensions	57 mm L x 108 mm W x 101.5 mm H
