Specifications

Product Type	BN 325-R
Brand	Schmersal
Series	BN 325
Switching Current	3 A
Switching Element	Reed Contacts
Switching Voltage	250 V AC
Type of Switching Output	Magnetic Drive
Accuracy	0.3 mm
Electrical Connection	Flat plug-in connector 4.8 mm
Rated Current	3 A
Rated Voltage	250 VAC
Switching Capacity (AC)	120 VA
Mechanical Durability	1000000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Threaded
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	24 mm
Height	26 mm
Weight	45 g
Width	85 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP00

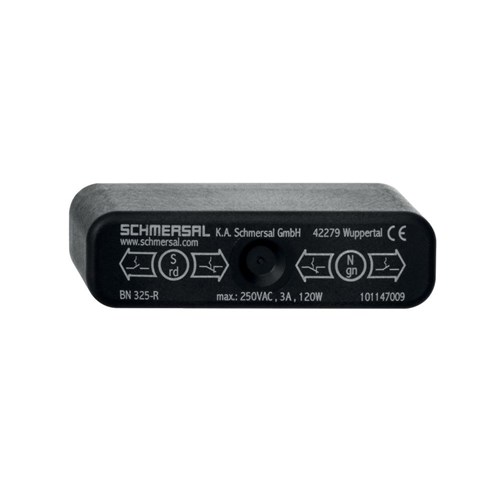

Schmersal 101147009 Magnetic Reed Switch 3A BP 10 Plug-In Connector Terminal
