Specifications

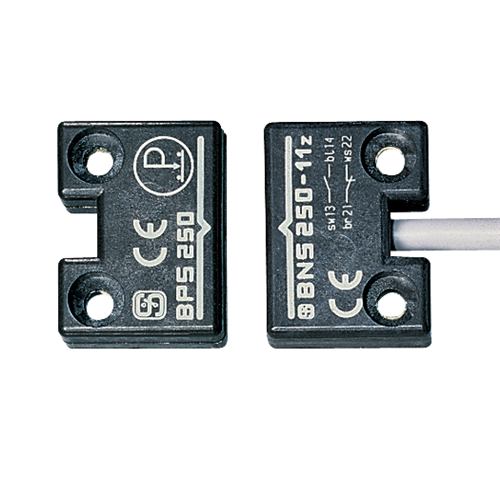

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 250
Cable Length	2 m
No. of N/C Contacts	2
No. of N/O Contacts	1
Rated Current	0.01 A
Rated Voltage	24 V DC
Mechanical Durability	25000000 Cycles
Actuator Type	BPS 250
Housing Material	Glass-fibre, reinforced thermoplastic
Depth	13 mm
Height	25 mm
Weight	82 g
Width	33 mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
