Specifications

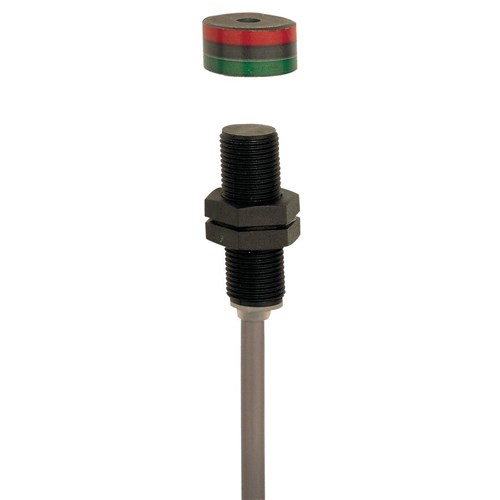

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Actuator Type	Plunger
Cable Length	3 m
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	25000000 Cycles
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 70 deg C
Overvoltage Category	3
Rated Current	0.25 A
Rated Frequency	5 Hz
Rated Power	3 W
Sensor Size	38.5 mm L
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type	Connector
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm
