Specifications

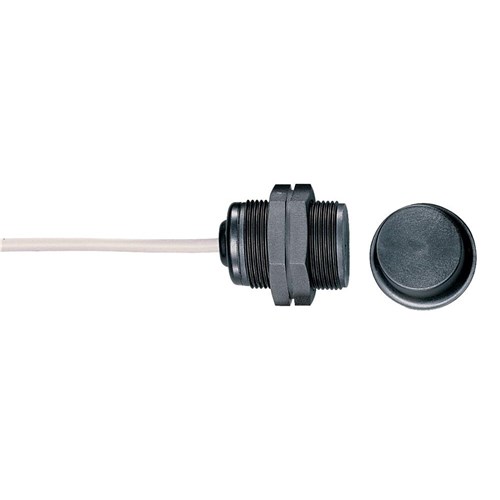

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 303
Cable Length	12 m
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Rated Voltage	100 V AC/DC
Mechanical Durability	25000000 Cycles
Actuator Type	BPS 303; BPS 300; BPS 303 SS
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	44 mm
Weight	461 g
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Enclosure Dimensions	44 mm L
