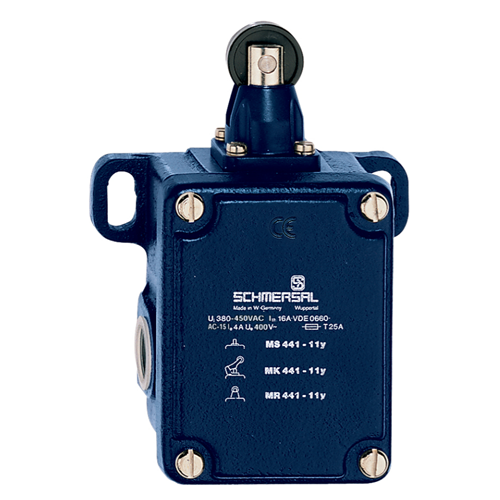

Schmersal 101160083 Position Switch 250VAC 1NO+1NC

Product Code: 101160083

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	400 V
Switching Principle	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4 A
Rated Voltage	250 VAC
Terminal Type	Screw terminals
Mechanical Durability	5000000 Cycles
Thermal Test Current	16 A
Actuator Type	Roller plunger
Contact Material	Silver
Housing Material	Aluminium
Depth	63 mm
Height	145 mm
Weight	620 g
Width	106 mm
Size	13 AWG
Operating Temperature	-40 to 200 deg C
IP Rating	IP65
Ambient Temperature	-40 ... +200 °C
Standards and Approvals	CCC, EC000030, EN IEC 60947-5-1, INMETRO
Enclosure Dimensions	63 mm L x 106 mm W x 145 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
