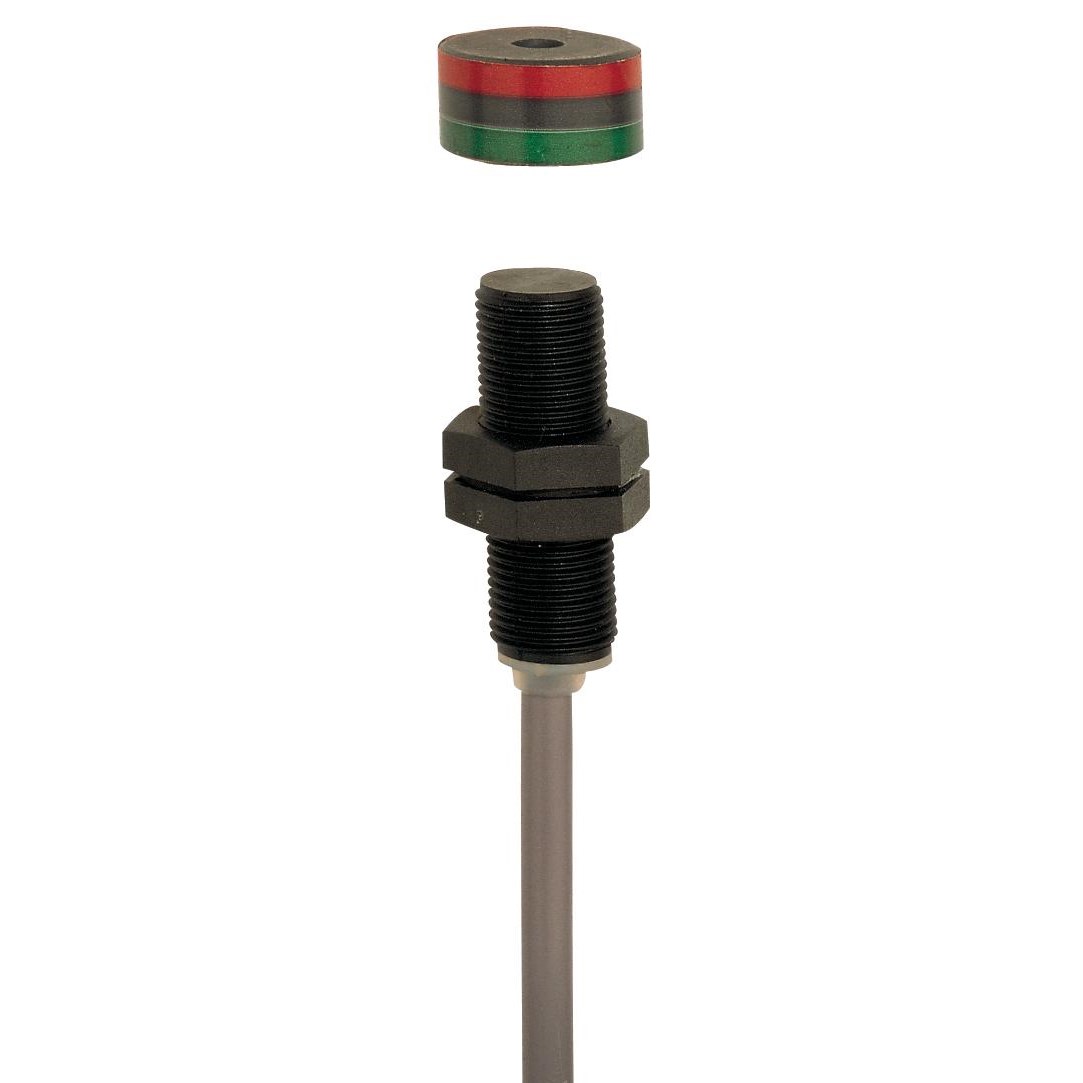

Schmersal 101160113 Magnetic Safety Sensor 10m Cable

Product Code: 101160113

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 10 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Quasi-flush
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.25 A
Rated Frequency 5 Hz
Rated Power 3 W
Sensor Size 38.5 mm L
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm
