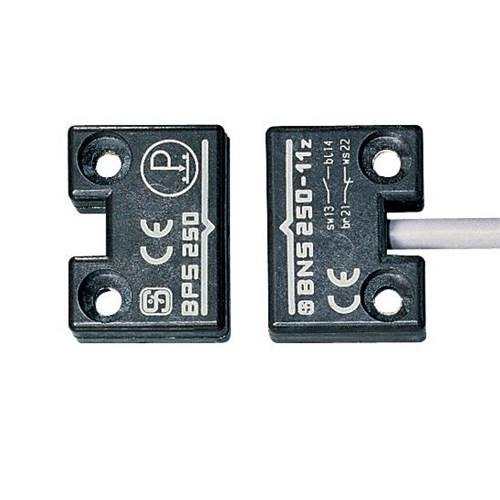

Schmersal 101164208 Magnetic Safety Sensor 3m Cable

Product Code: 101164208

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 3 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Not Flush
Mechanical Life 25000000 Cycles
Mounting Type Not Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.1 A
Rated Frequency 5 Hz
Rated Power 1 W
Rated Voltage 24 VDC
Sensor Size 13 mm L x 33 mm W x 25 mm H
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-150 Hz
Wire Size 0.25 sq-mm
