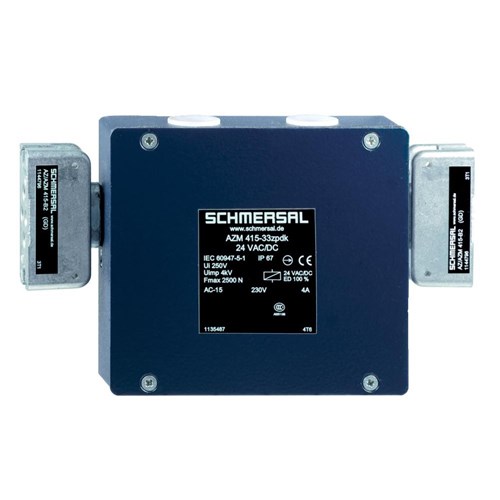

Schmersal 101164603 Solenid Interlock Switch 24VAC/VDC

Product Code: 101164603

1

Specifications

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 415
No. of N/C Contacts	3
No. of N/O Contacts	3
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action
Rated Current	6 A
Rated Power	10 W
Rated Voltage	24 V AC/DC
Mechanical Durability	1000000 Cycles
Cable Entry	2 x M20 x 1.5
Contact Material	Silver
Guard Locking Force	2,500 N
Housing Material	Aluminium
Depth	46.5 mm
Height	136 mm
Weight	1,235 g
Width	141 mm
Operating Temperature	-25_+50
IP Rating	IP67; IP65
Standards and Approvals	cULus, UKCA
Enclosure Dimensions	50 mm L x 125 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
