Specifications

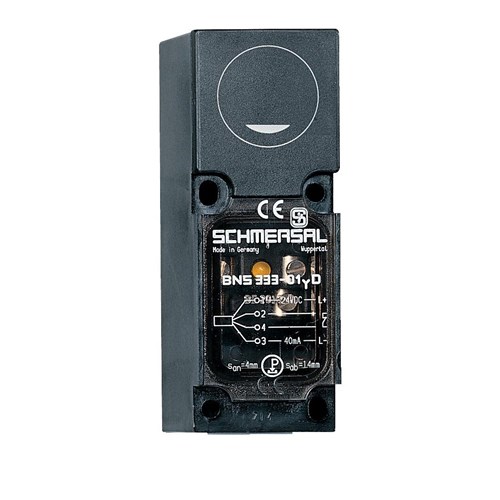

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 333
No. of N/C Contacts	1
No. of N/O Contacts	0
Rated Current	0.2083333333
Rated Frequency	5 Hz
Rated Power	1250 W
Rated Voltage	250 V AC
Mechanical Durability	20000000 Cycles
Actuator Type	BPS 303; BPS 300; BPS 303 SS
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	40 mm
Height	112 mm
Weight	150 g
Width	40 mm
Size	15 AWG
Operating Temperature	-25 to +55 °C
IP Rating	IP65
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Enclosure Dimensions	39 mm L x 52 mm W x 90 mm H
