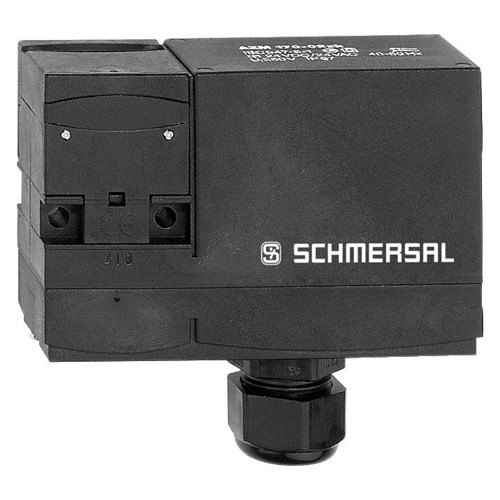

Schmersal 101175273 Solenid Interlock Switch NO+NC

Product Code: 101175273

1

Specifications

Product Type	Solenid Interlock Switch
Brand	SCHMERSAL
Action	Slow Action
Actuating Speed	0.2 m/s
Actuator Type	Roller Lever
Contact Configuration	NO+NC
Contact Material	Silver
Degree of Protection	IP40
Housing Material	Grey Cast Iron, Painted
Mechanical Life	100 Cycles
Operational Temperature	80 deg C
Rated Current	1000 A
Rated Insulation Voltage	250 V
Sensor Size	76 mm L x 104 mm H
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
