Specifications

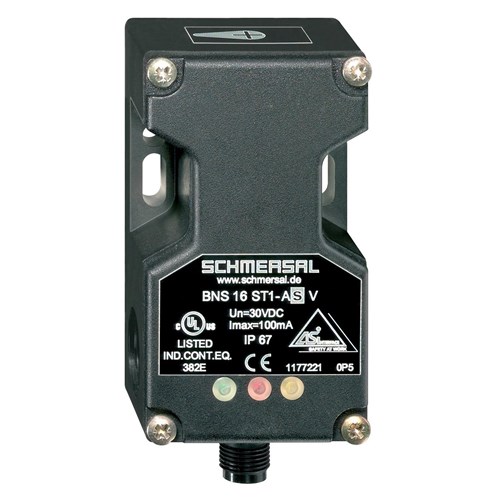

Product Type	AS-Interface magnetic safety sensor
Brand	Schmersal
Series	BNS 16
Insulation Class	Class II
Electrical Endurance	500000
Plug Type	Connector plug M12, 4-pole, (A-coding)
Rated Insulation Voltage (Ui)	32 VDC
Switching Principle	Magnetic Drive
Rated Current	50 mA
Rated Voltage	18 to 31.6 V DC (Protection against polarity reversal)
Actuator Type	BPS 16
Housing Material	Glass-fibre, reinforced thermoplastic
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	38.5 mm
Height	90 mm
Weight	138 g
Width	40 mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Enclosure Dimensions	38.5 mm L x 40 mm W x 90 mm H
